2x4 Ceiling Troffer Retrofit Kit, 66w, 4000k, AC direct, linkable

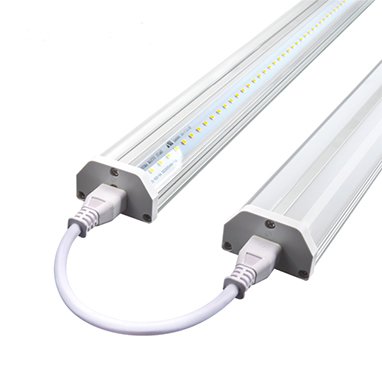

Our retrofit kit for 2×4ft ceiling troffers is 3 units of our 3ft Double Row Skinnylights T5 integrated Linear Lights, AC-direct, linkable, magnetic. Each 3ft segment uses 22 watts, for total of 66 watts, able to replace 4 × 32w fluorescent tubes. To install, remove all fluorescent tubes & sockets, connect line voltage to one Skinnylight segment, then daisy chain the other 2 segments. The system is modular, capable of adding or subtracting as many segments as you need. Add a 4th segment to make it 88 watts. Once installed, future replacements, or adding or subtracting of segments, takes just seconds. Ready to retrofit your fluorescent fixtures??
Our retrofit kit for 2×4ft ceiling troffers is 3 units of our 3ft Double Row Skinnylights T5 integrated Linear Lights, AC-direct, linkable, magnetic. Each 3ft segment uses 22 watts, for total of 66 watts, able to replace 4 × 32w fluorescent tubes. To install, remove all fluorescent tubes & sockets, connect line voltage to one Skinnylight segment, then daisy chain the other 2 segments. The system is modular, capable of adding or subtracting as many segments as you need. Add a 4th segment to make it 88 watts. Once installed, future replacements, or adding or subtracting of segments, takes just seconds. Ready to retrofit your fluorescent fixtures??
Our retrofit kit for 2×4ft ceiling troffers is 3 units of our 3ft Double Row Skinnylights T5 integrated Linear Lights, AC-direct, linkable, magnetic. Each 3ft segment uses 22 watts, for total of 66 watts, able to replace 4 × 32w fluorescent tubes. To install, remove all fluorescent tubes & sockets, connect line voltage to one Skinnylight segment, then daisy chain the other 2 segments. The system is modular, capable of adding or subtracting as many segments as you need. Add a 4th segment to make it 88 watts. Once installed, future replacements, or adding or subtracting of segments, takes just seconds. Ready to retrofit your fluorescent fixtures??
Power: 66w or 88w
CCT: 4000k (custom CCT on request)
Efficiency: 120 Lm/W
Lens: clear
Input: 120-277vAC
IP Rating: IP20 indoor only
Mounting: Magnetic mounting clips
Model: SL-DT5-3FT-22W-x3 (x4)
Certifications: ETL / DLC
Applications: Retrofitting 4’ or 8’ fluorescent fixtures
(Allow 5-8 weeks for production & delivery)
